BA series butterfly laser package mount

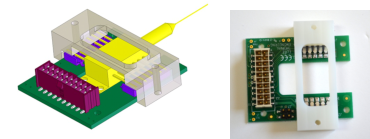

The BA series butterfly mount is designed for mounting standard butterfly laser packages on a flat cooling surface without having to risk forming the 14 pins. The 14 pins will rest on a pair of spring loaded ZIF contacts and be squeezed between the contacts and a plastic clamp. The base of the butterfly package will rest on the surface of a heatsink. All 14 pins are routed to the connector at the end of the PCA. The connector also has designated pins for fans, TECs and thermistor, with the PCB providing plated thry holes for soldering the wires of fans, TECs and thermistor.
